existing 3D concept from Dassault Systèmes Industrial Equipment team
a collaborative Project between CATIA Design, SIMULIA, 3DEXCITE brands and DASSAULT SYSTEMES Industrial Equipment Industry team
images produced by CATIA Design (visualization) team
Redesign of a complete Cabin interior of an Excavator, focusing on :
- Operator Comfort (Human Centered Design Approach)
- Smart Cabin (Connected and intelligent)
My area of expertise :
Style | Design + Concept Design of the interior concept
Engineering concept : Edouard SUTRE

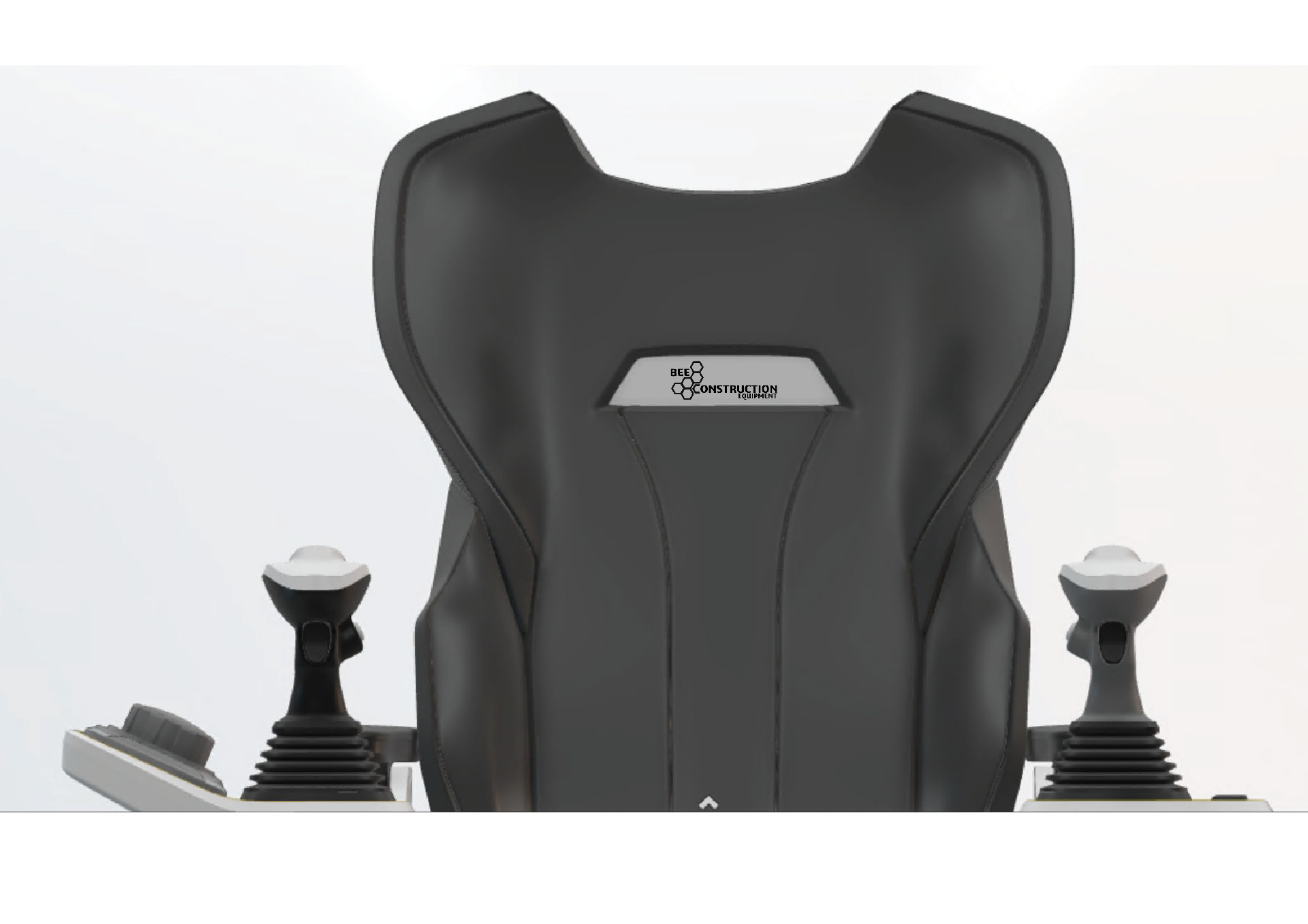

Seat Concept Modeling : Franck COLAS

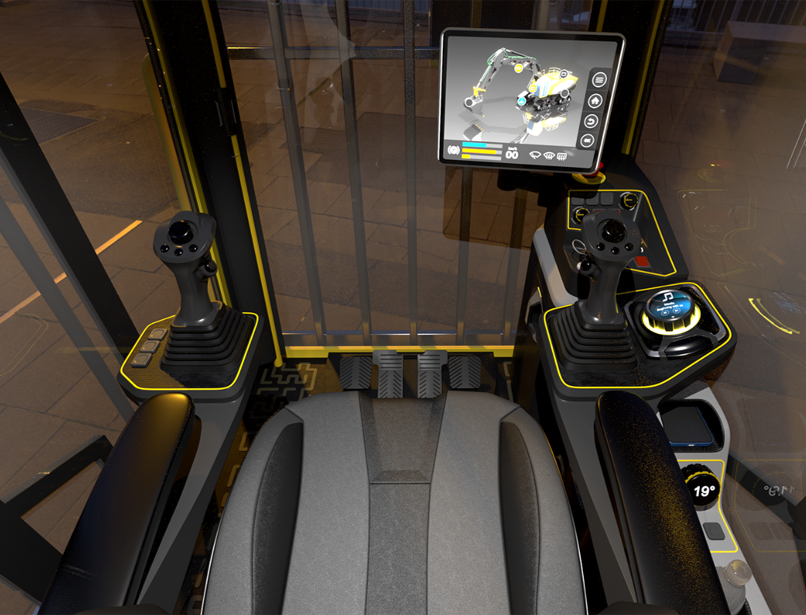

images produced by CATIA Design (visualization) team
images produced by CATIA Design (visualization) team

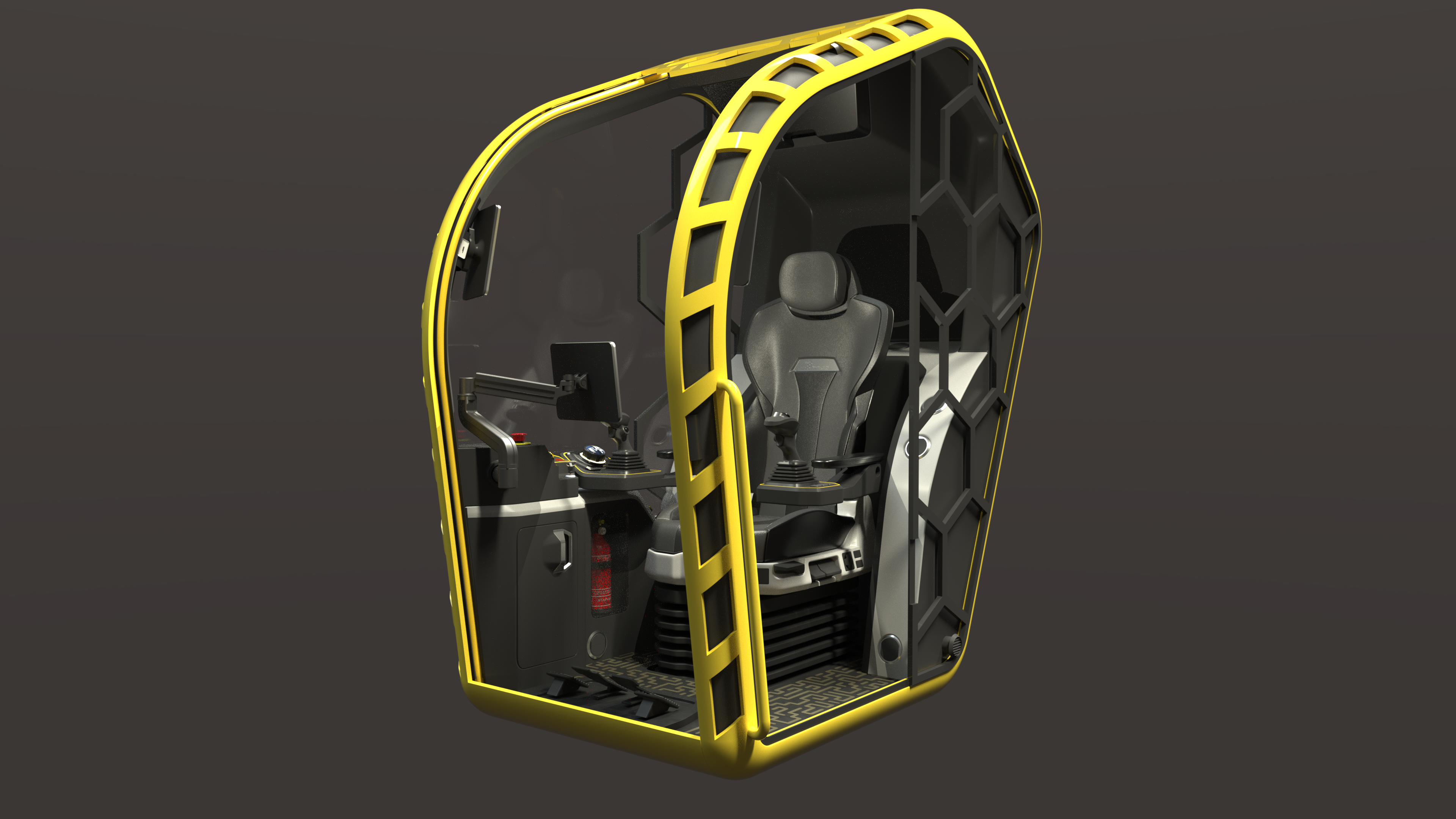

FINAL PRODUCT

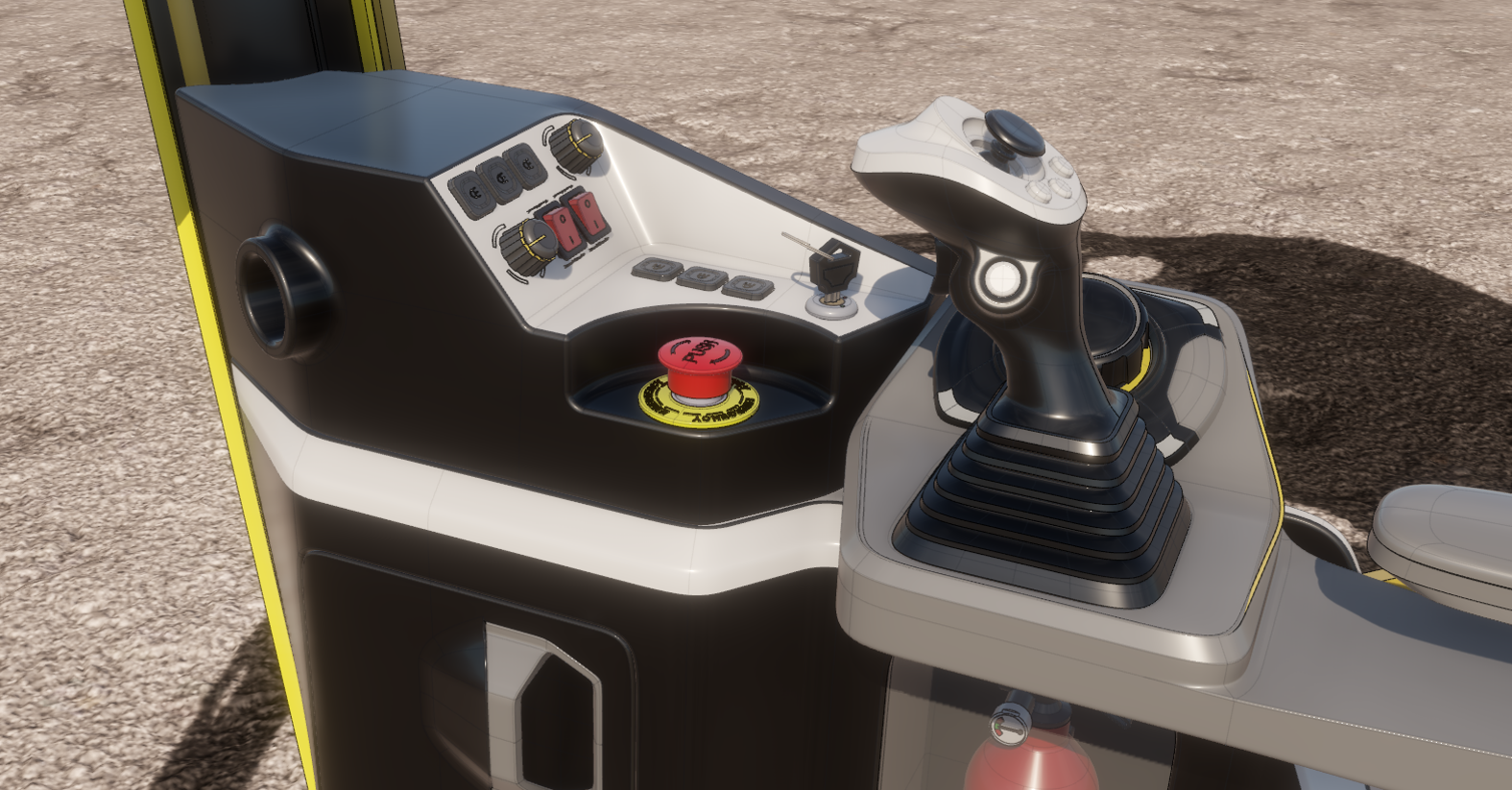

images produced by 3DEXCITE team

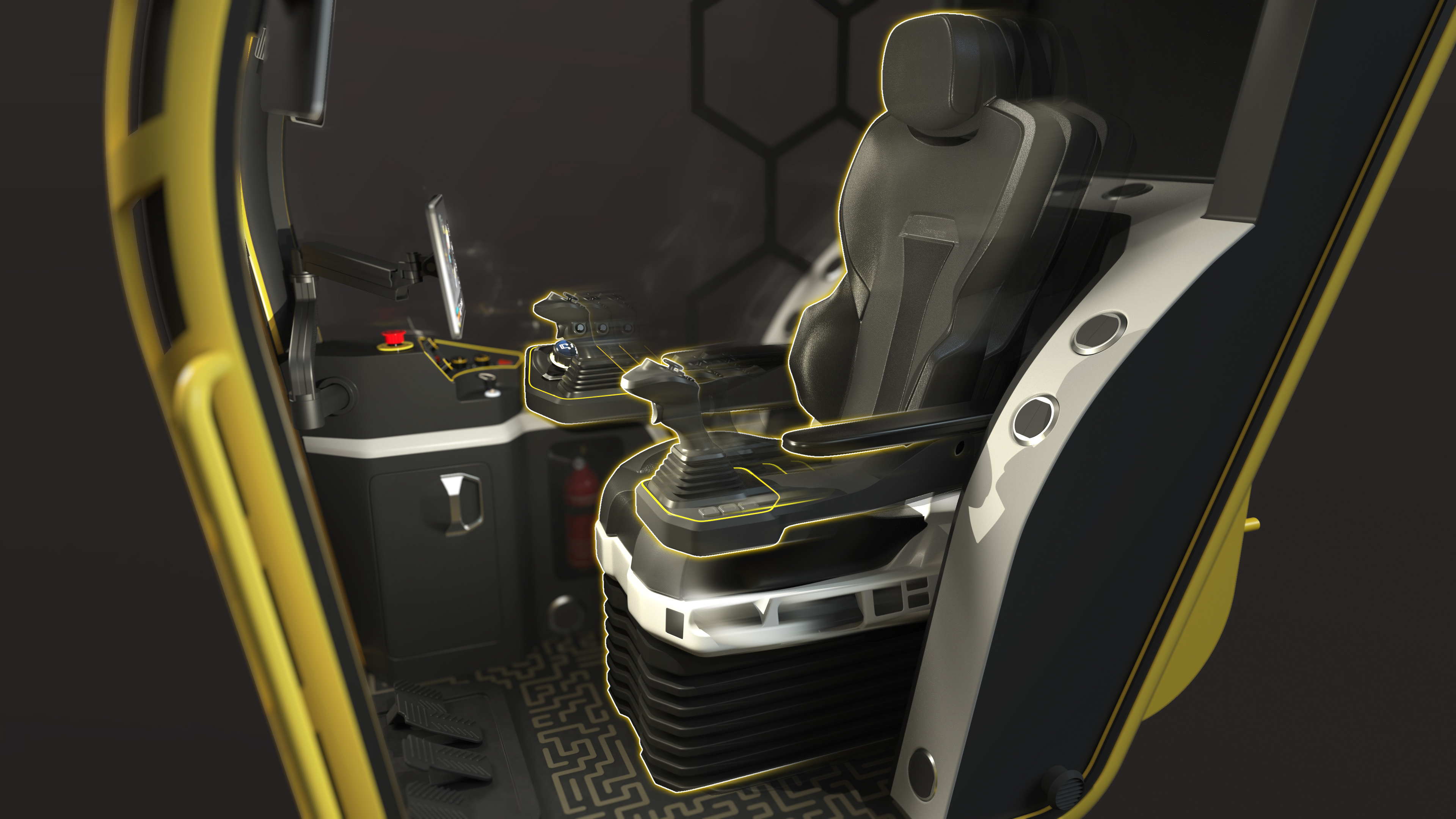

images produced by 3DEXCITE team
images produced by 3DEXCITE team
images produced by 3DEXCITE team
images produced by 3DEXCITE team
images produced by 3DEXCITE team
Workflow & Process

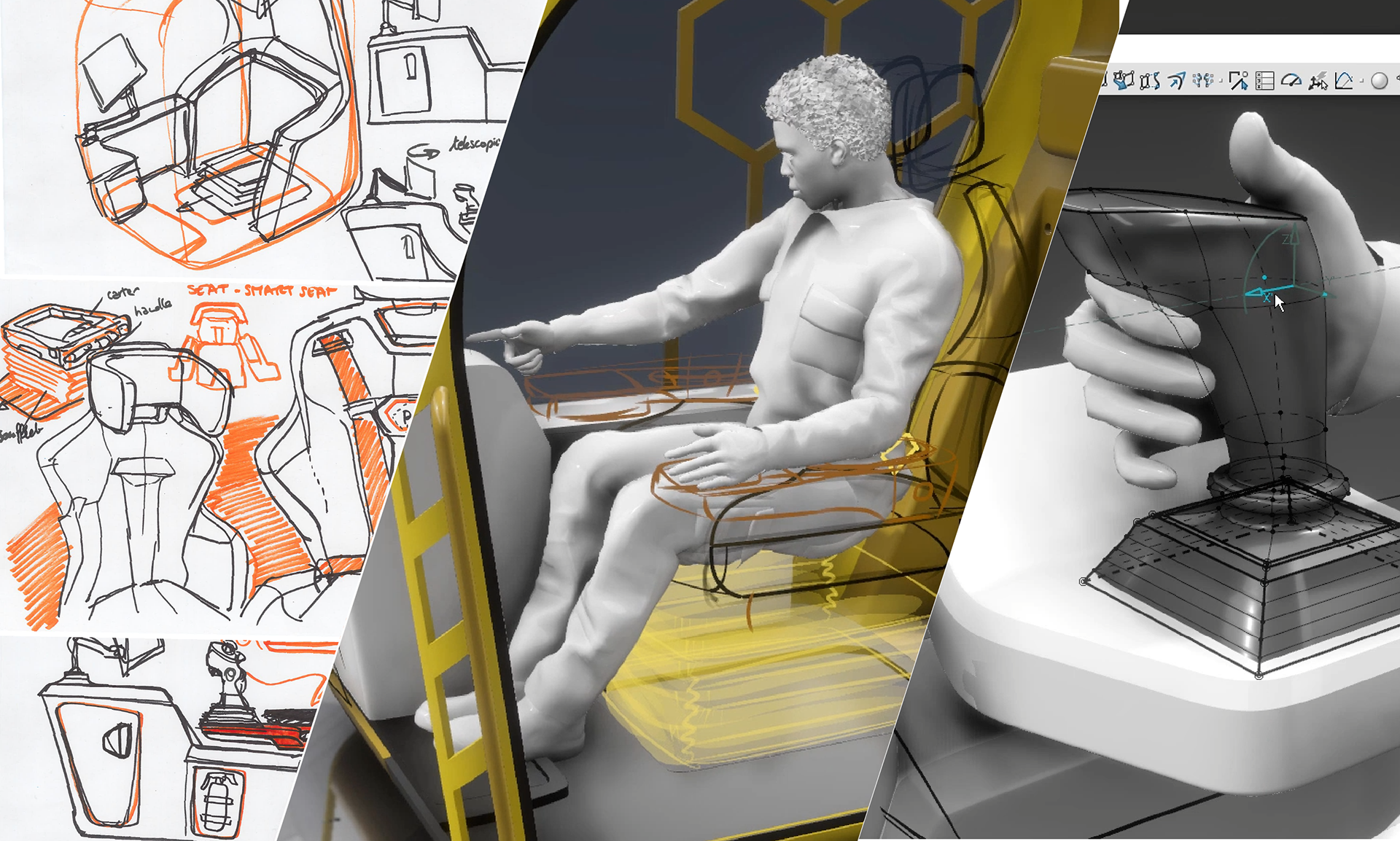

2D Sketches concept researches

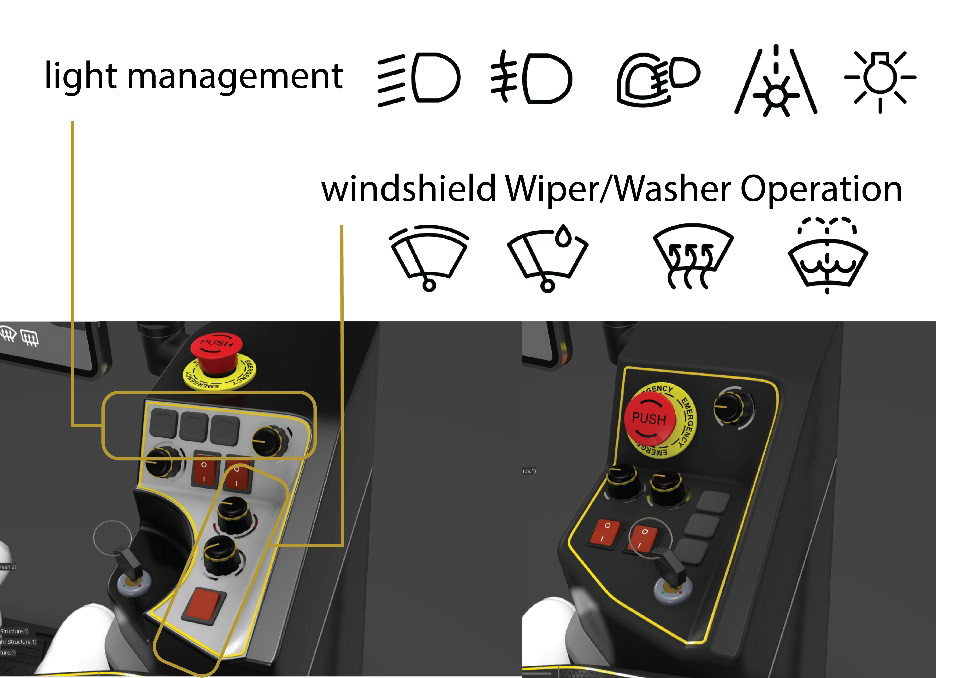

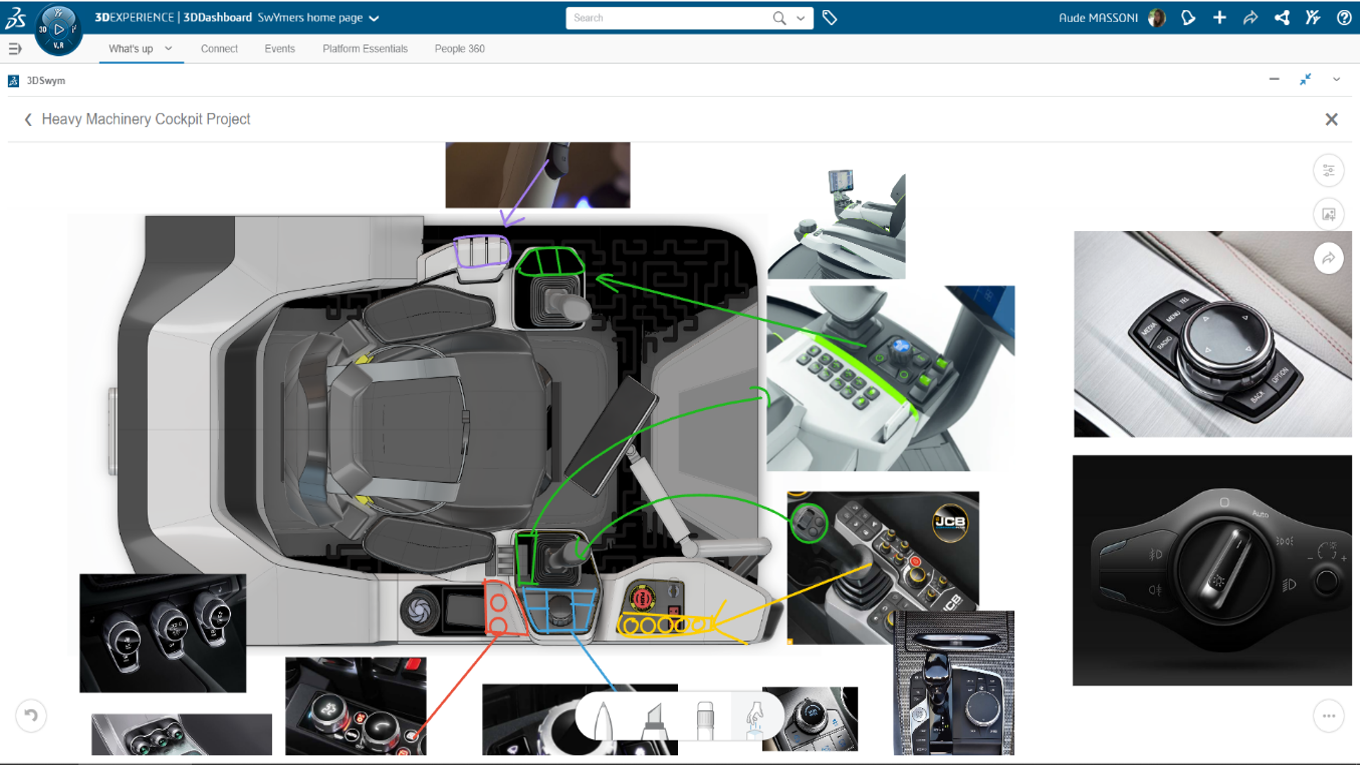

Command Zoning researches

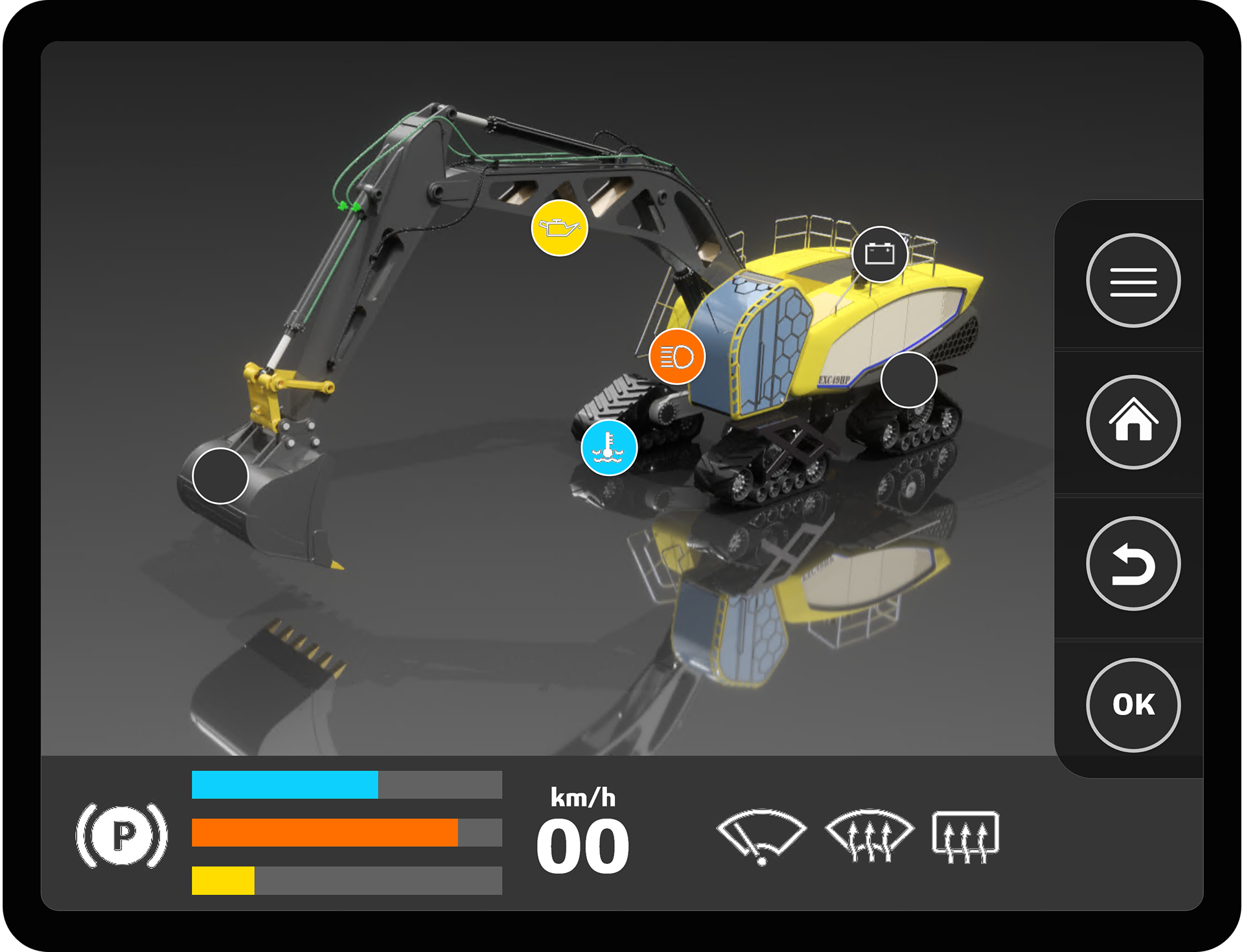

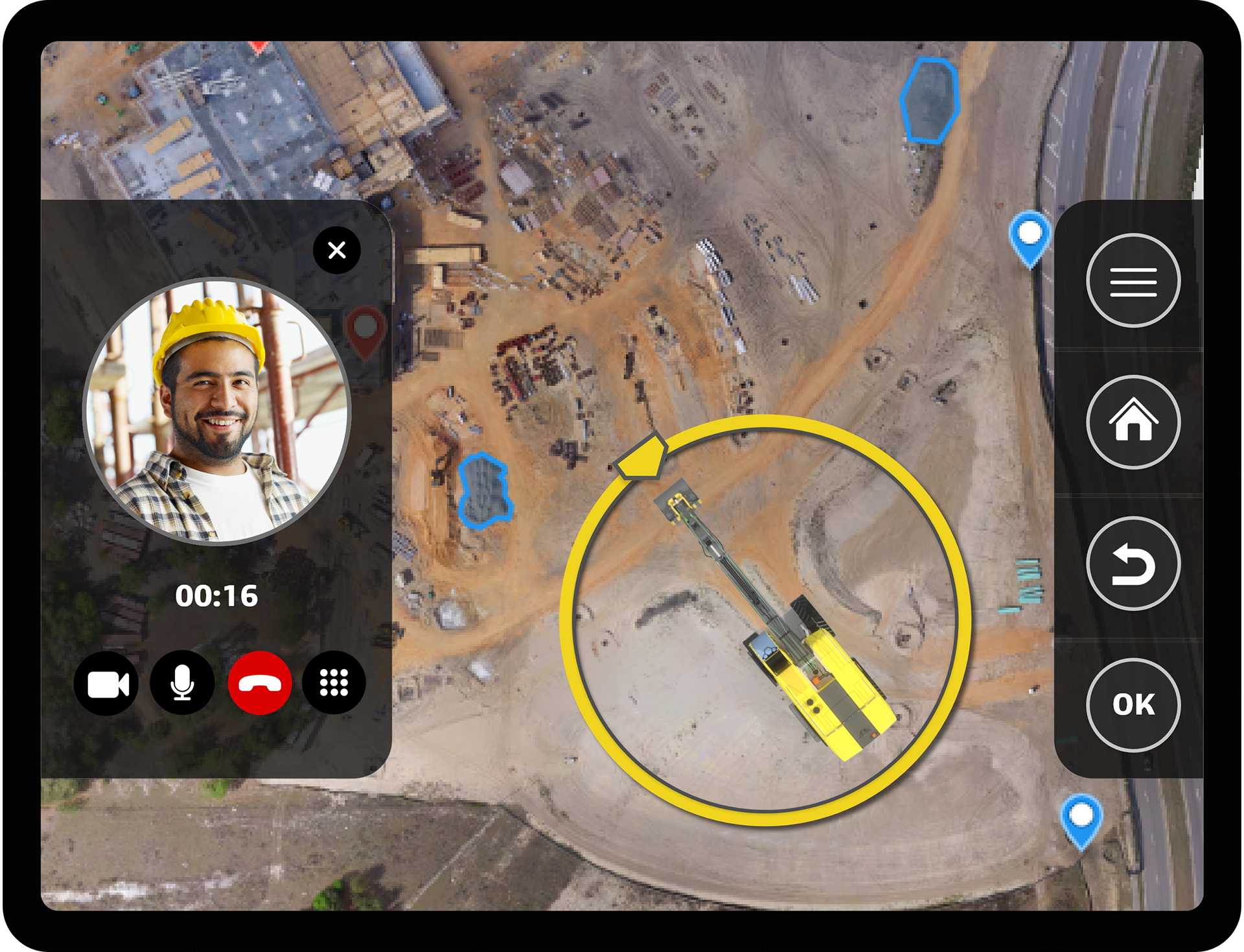

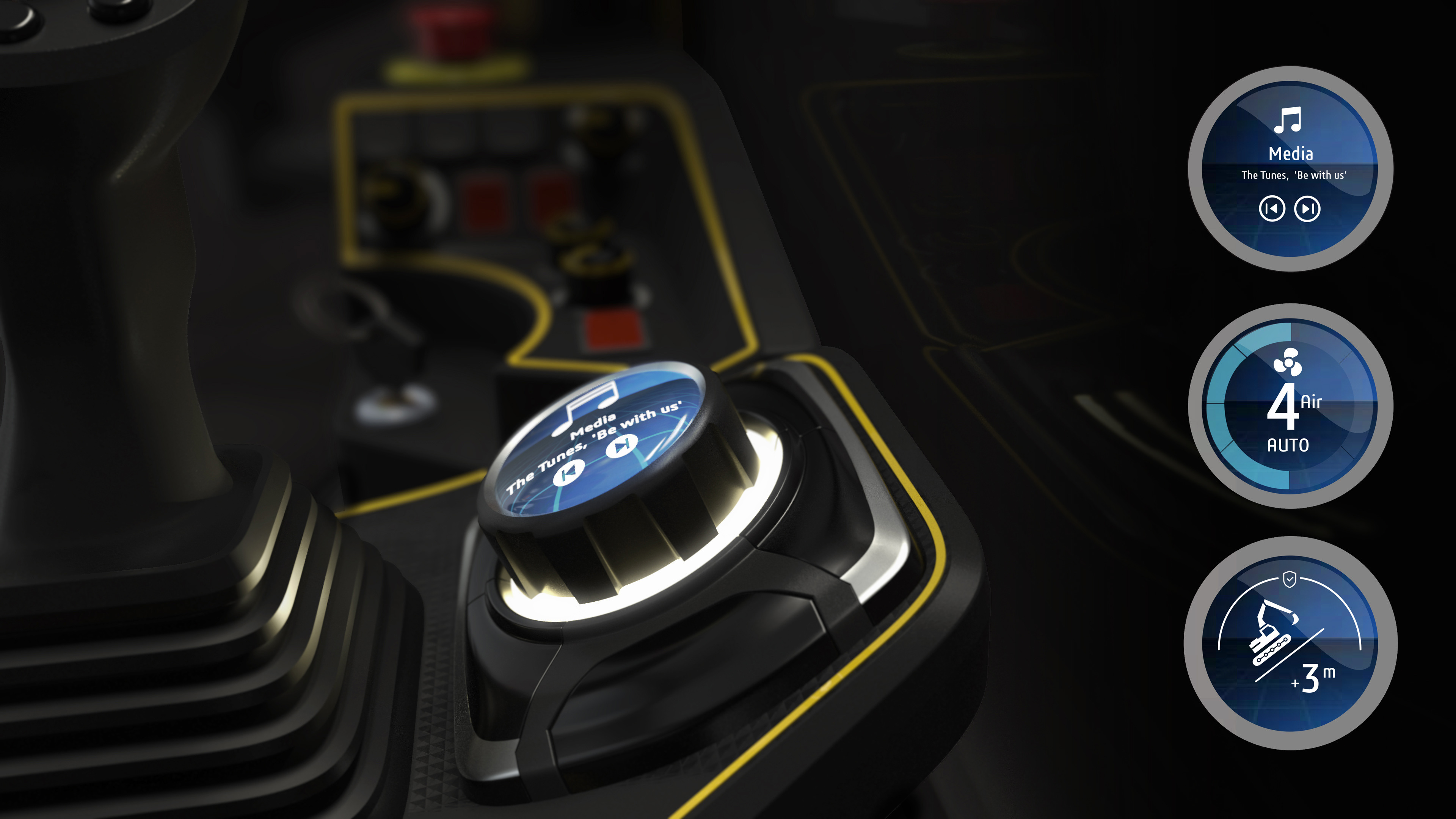

HMI Concept for Operator Main Screen
Focus on Joystick Concept Design
from first concept, 3D Printing ergonomy evaluation, redesign of joystick, final model integration

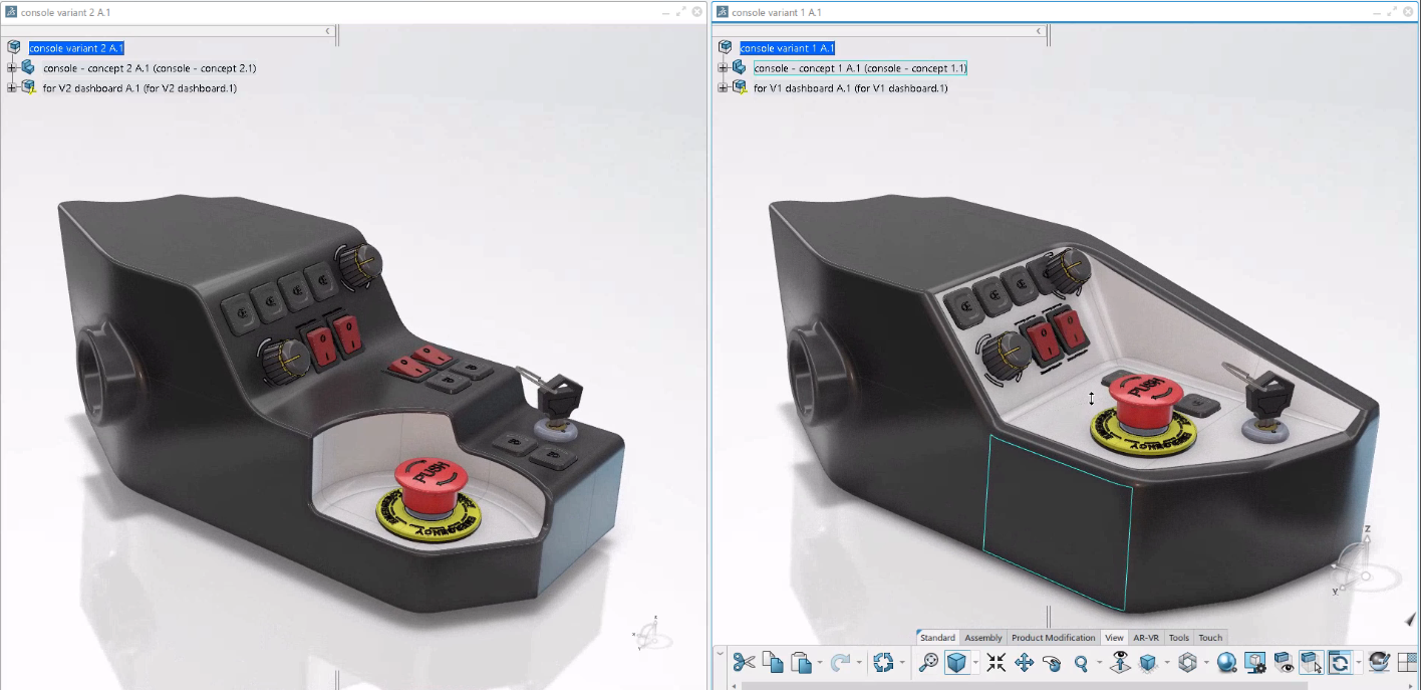

3DEXPERIENCE Platform R2022x - CATIA Natural Sketch
3DEXPERIENCE Platform R2022x - CATIA Natural Sketch & CATIA Imagine & Shape
3DEXPERIENCE Platform R2022x - CATIA Natural Sketch VR
3DEXPERIENCE Platform R2022x - CATIA Human Animation Studio
